Understanding Different Types Of Truss Frames For Homes In Newcastle

When planning a new home or major renovation, the roof structure is one of the most important design decisions you will make. The right truss system supports the entire roof, transfers loads safely and ensures long-term durability. For builders and owner-builders researching truss frames in Newcastle, understanding the different types available can help you choose the most suitable solution for your project.

At Trussted Frames & Trusses, we design and manufacture custom structural timber solutions tailored to Newcastle and the wider Hunter Region. With more than 35 years of industry experience, we know that no two builds are the same and neither are the truss frames that support them.

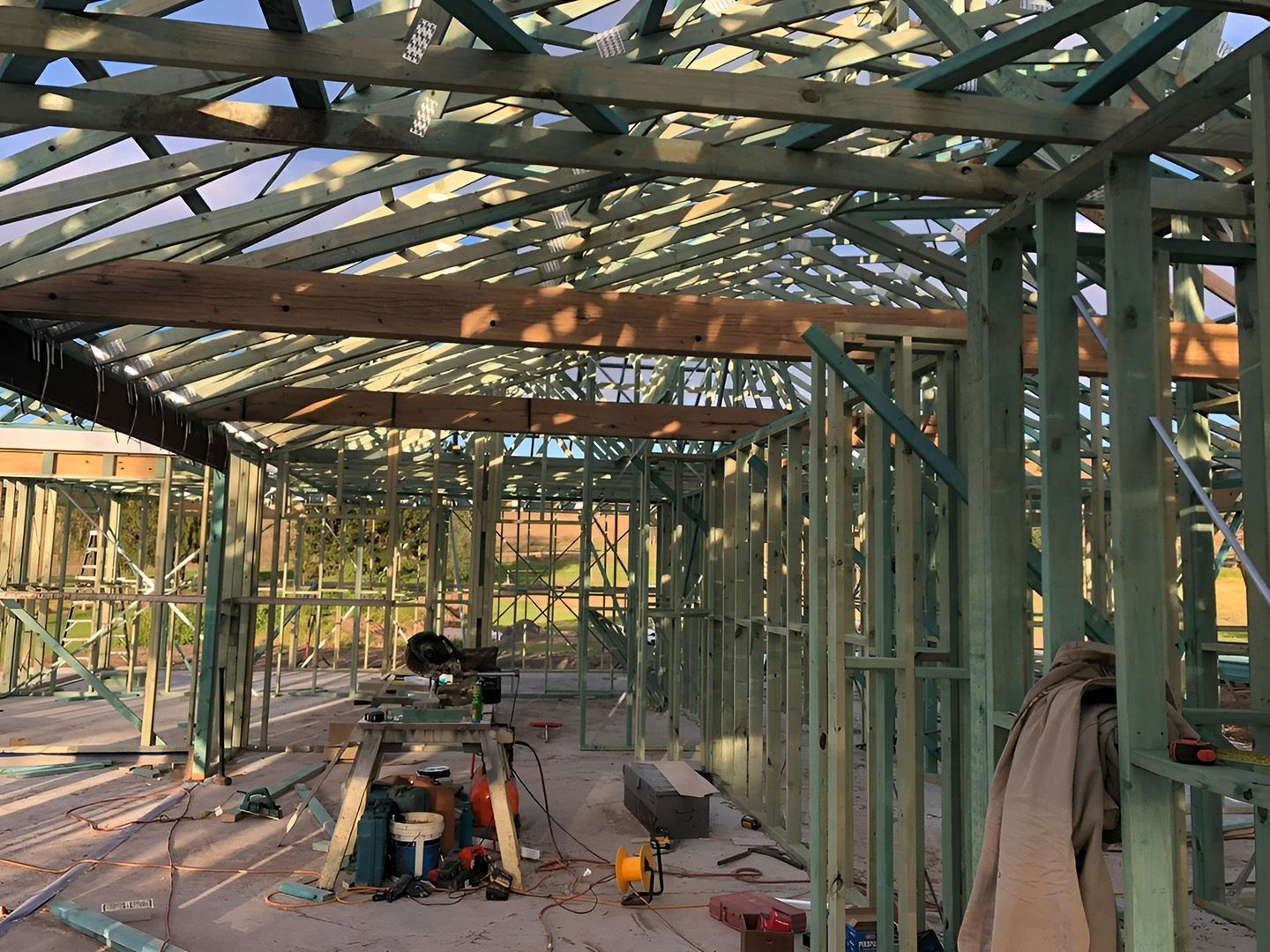

Truss frames form the structural skeleton of a roof. They are engineered timber components designed to distribute loads evenly across walls and supports. A properly designed truss system ensures the roof can handle wind loads, roofing materials and environmental conditions specific to your site.

Choosing the correct truss frames Newcastle builders rely on is not just about shape or cost. It is about compliance with Australian Standards, local council requirements and performance in coastal or regional environments.

If you have ever searched for truss frames, you have likely discovered there are several common truss types, each suited to different roof designs and structural needs.

King post trusses are one of the simplest and most traditional roof truss designs. They consist of two angled top chords, a bottom chord and a single central vertical post.

These trusses are typically used for:

• Smaller spans
• Verandahs and extensions
• Feature or exposed timber designs

The simplicity of a king post truss makes it cost effective and visually appealing when exposed internally. However, they are generally limited to shorter spans and may not suit larger residential builds.

For certain architectural homes in Newcastle, especially those aiming for a traditional or open beam aesthetic, king post designs can be both functional and visually striking.

Fink trusses are among the most common roof truss designs used in Australian residential construction. Recognisable by their distinctive W-shaped webbing, they offer excellent strength and efficiency.

Fink trusses are commonly used for:

• Standard pitched roofs
• Project homes
• Single and double storey dwellings

Their design distributes loads evenly and allows for economical use of timber while maintaining structural integrity. For many residential builds requiring reliable and cost-effective truss frames Newcastle wide, fink trusses are a practical choice.

Because they are so widely used, they can be manufactured efficiently and tailored to suit various spans and roof pitches.

Scissor trusses are designed to create vaulted or raked ceilings. Instead of a horizontal bottom chord, the lower members angle upward, following the pitch of the roof.

This design allows homeowners to achieve:

• Cathedral ceilings
• Increased internal volume
• Enhanced architectural appeal

Scissor trusses are popular in custom homes across Newcastle, particularly in coastal areas such as Merewether where open plan living and higher ceilings are in demand.

However, they require careful engineering to ensure structural stability and compliance with wind ratings. When specifying truss frames, Newcastle builders must consider both design ambitions and local structural requirements.

Attic trusses are engineered to create usable space within the roof cavity. They allow for an additional room or storage area without requiring a full second storey.

Benefits of attic trusses include:

• Maximised internal space
• Cost-effective expansion
• Flexibility for future use

For developers or owner-builders looking to increase floor area on narrower blocks, attic trusses can provide an efficient solution.

Engineering these systems requires precision. Load paths, floor loads and insulation requirements must all be factored into the design. Working with an experienced local manufacturer ensures compliance with Australian building standards and site-specific conditions.

In addition to internal truss types, roof designs often incorporate gable and hip trusses.

Gable trusses support the end walls of a pitched roof and are commonly used in standard suburban housing. Hip trusses are designed for roofs that slope on all sides, offering improved wind resistance and a distinct visual style.

In coastal parts of Newcastle, wind ratings are a critical consideration. Selecting appropriate truss frames requires careful attention to wind classifications and structural tie-down requirements.

Building in Newcastle and the Hunter Region comes with unique environmental factors. Coastal wind exposure, salt air and varying terrain all influence structural design.

When choosing truss frames, it is important to consider:

• Wind load classifications
• Bushfire ratings where applicable
• Roof pitch and material weight
• Council and planning requirements

Using premium Australian timber manufactured locally provides additional confidence. Locally produced frames and trusses are designed with regional conditions in mind, ensuring compliance and long-term durability.

At Trussted Frames & Trusses, we tailor every frame and truss system to suit your specific plans and site conditions. From multi unit developments in Mayfield to rural builds near Tamworth, we adapt our designs to meet the demands of each project.

While standard truss types are common, many projects require custom engineering. Complex rooflines, large spans and architectural features all demand precise structural solutions.

Custom truss frames offer several advantages:

• Accurate fit to architectural plans
• Reduced on-site modifications
• Faster installation
• Improved structural performance

Our wall frames, beams, rafters and roof trusses are engineered using premium Australian timber and manufactured locally. This ensures consistent quality control and compliance with national building codes.

By delivering components ready to install, we help builders stay on schedule and minimise costly delays.

When looking for truss frames, working with a local manufacturer offers clear benefits.

A Newcastle-based supplier understands:

• Local council requirements
• Regional wind ratings
• Coastal environmental conditions
• Builder expectations in the Hunter Region

At Trussted Frames & Trusses, we have built our reputation on quality, durability and reliability. Every frame and truss we create reflects our commitment to excellence and decades of industry experience.

We collaborate closely with builders, developers, architects and owner-builders to ensure each structural system performs exactly as intended.

The right truss system depends on your design goals, budget and site conditions. Whether you are planning a simple pitched roof, a vaulted ceiling or an attic conversion, selecting suitable truss frames is a decision that should be guided by experienced professionals.

Understanding the differences between king post, fink, scissor and attic trusses allows you to make informed choices. However, engineering expertise ensures those choices translate into safe and compliant structures.

If you are planning a new build or renovation and need expert guidance on truss frames Newcastle wide, call Trussted Frames & Trusses today to speak with our team and request a tailored quote for your project.
